1.Introduction to Geothermal Energy



Geothermal energy is a clean, renewable resource that provides huge amount of energy whose development and production characterizes an existing and promising international market.

Heat has been radiating from the center of the Earth, at 6437.4 km deep, with temperatures of about 5,500°C.

Heat flows through the crust of the Earth at an average rate of almost 59 mW/m² [1.9 x 10-2 Btu/h/ft²] and the earth’s natural heat reserves are immense. Ninety-nine per cent of planet Earth has a temperature in excess of 1,000 degrees Celsius as a result of residual heat inherited from the Earth’s primordial origins and the breakdown of radioactive materials.

Thermal energy in the earth is distributed between the constituent host rock and the natural fluid that is contained in its fractures and pores.

These fluids are mostly water with varying amounts of dissolved salts; typically, in their natural in situ state, they are present as a liquid phase but sometimes may consist of a saturated, liquid-vapor mixture or superheated steam vapor phase.



Fig 1 a e b

Fig.1 – Earth’s internal structure and temperatures in the earth
(from Geothermal Energy Association)


Local and regional geologic and tectonic phenomena play a major role in determining the location (depth and position) and quality (fluid chemistry and temperature) of a particular geothermal resource, but certain conditions must be met before claiming a viable geothermal resource:

  1. Reservoir accessibility
    • achieved by drilling to depths of interest
  2. Reservoir productivity

Thermal energy is extracted from the reservoir by coupled transport processes (convective heat transfer in porous and/or fractured regions of rock and conduction through the rock itself).

The geothermal heat extraction process must be designed with the constraints imposed by prevailing in situ hydrologic, lithologic, and geologic conditions.

Typically, hot water or steam is produced and its energy is converted into a marketable product (electricity, process heat, or space heat) and any waste products is properly treated and safely disposed to complete the process.

Many aspects of geothermal heat extraction are similar to those one used by the oil, gas industries. Because of these similarities, equipment, techniques, and terminology have been borrowed or adapted for use in geothermal development, a fact that has, to some degree, accelerated the development of geothermal resources.

However, there are inherent differences that have limited development such as higher well-flow requirements and temperature limitations to drilling and logging operations

The use of geothermal resources is strongly influenced by the nature of the system that produces them

  1. resources of hot volcanic systems are utilized primarily for electric power generation
  2. resources of lower temperature systems are utilized mostly for space heating and other direct uses.

Consideration of a number of factors is required to determine the optimal use of a geothermal resources

  • the type (hot water or steam) of geothermal fluid
  • the rate of flow
  • the temperature and chemical composition
  • the pressure of the geothermal fluid and depth of the geothermal reservoir



1.1 A Historical  Review of Geothermal Energy

The use of geothermal waters is a very ancient phenomenon probably dating back to the higher Paleolithic.

Nevertheless, its development from a more specifically health viewpoint originated in Japan and in Italy approximately 2000 years ago.

In Japan it was limited at national level, where Romans spread it from Italy to any region of their Empire (Hungary, Germany, France, Spain, Great Britain, Turkey and Arabia).

 Fig 2

Fig.2 – Ruins of the Roman bathing facility at  Badenweiler in the Rhine rift valley (southern Germany)
From “History of Geothermal Energy Use” – Springer



The exploitation of the geothermal energy developed later and the first industrial plant to produce energy was built in Tuscany – Italy in 1827.

Francesco Larderel was the owner of a plant producing boric acid by extracting it from the water flowing underground in the area, he thought that instead of burning the woods of nearby forests to make the boric water evaporate, thus he decided to exploit the heat contained naturally in the water.

The idea was successful and, up to 1875, the chemical industry in Larderello was the most important in the world with reference to the boric products sector. It was in Larderello, in 1904, that the first lights powered by geothermal energy were lit, and in 1913 the first industrial plant for the production of electricity from geothermal sources was inaugurated, with a power of 250 kW.

 Fig.3

Fig.3 – Lardarello 1904: Prince Piero Ginori-Conti with his apparatus that converted geothermal to electrical energy for the first time in history. (From: UGI 2010)



Since then Italy has always been a leader in the production of geothermal electricity, and in time it has accumulated a unique experience on a global scale.

Starting from the 1920s, the geothermal industry developed also in Japan, Iceland, Hungary and, starting from the 1950s, in the rest of the world.

Currently, researches in geothermal energy exploitation are aimed to explore greater depths with the objective of finding supercritical fluids: a condition which can be reached when temperature is greater than 374°C and the pressure above 220 bars, the critical point.

Overall the geothermal share of global power generation remains very small (0.3%), but in certain countries it plays a significant role, for example, Kenya (44% of power), Iceland (27%), El Salvador (26%), and New Zealand (18%) [BP Statistical review of world energy 2016].

1.2 The Main Geothermal Energy Concepts

Earth emits energy in the form of heat, which propagates from deeper ground towards the surface

  • the so-called flow of heat or geothermal flow

The heat flow is due to two primary processes:

  1. Upward convection and conduction of heat from the Earth’s mantle and core (original heat)
  2. Heat generated by the decay of radioactive elements, particularly isotopes of uranium, thorium, and potassium.

Due to the different thicknesses of the Earth’s crust and the different geological situations which can cause the rise of warmer materials from deeper zones, the geothermal gradient (i.e. the increase in temperature, due to greater depth) is not equal all over the earth.

On average, the temperature increases 2-3°C per 100 m in depth, but the increase can vary from 1° up to 5°C/100 m.

1.2.1 Geothermal areas and fields

With reference to the “plate tectonics” theory (according to which the earth’s crust can be divided into approximately 20 micro-areas called “plates” continuously interacting), the hottest geothermal areas of the globe are generally positioned along the breaking and collision margins of the plates.

The flow of heat is greater where the thickness of the lithosphere is less, as for example on the ocean ridges or in the continental rifting zones or in volcanic areas where different geological processes lead to rock melting, or in areas where there is slowly cooling magma in the subsoil.

The breaking of a plate causes long cracks on the earth’s crust, through which the magma reaches the surface (the Iceland Rift, The Red Sea/Rift Valley system, the Baikal Lake). Such regions might encompass several geothermal fields.

Fig.4

Fig.4 – World Map of Tectonic Plate Boundaries (from USGS)



Geothermal fields are delimited zones that are characterized by a high and anomalous heat flux, however to be able to use this source a fundamental element, together with hot rocks, is necessary: water.

The best geothermal fields are generally found around volcanically active areas often located close to boundaries of tectonic plates.  Although some of the geothermal resources are located in populated, easily accessible areas, many others are found deep on the ocean floor, in mountainous regions, and under glaciers or ice caps.



1.3 The Geothermal Systems

“A geothermal system is any localized geologic setting where portions of the Earth’s thermal energy may be extracted from a circulating fluid and transported to a point of use.

A geothermal system includes fundamental elements and processes, such as fluid and heat sources, fluid flow pathways, and a caprock or seal, which are necessary for the formation of a geothermal resource.” (USGS)

Fig5_a e b

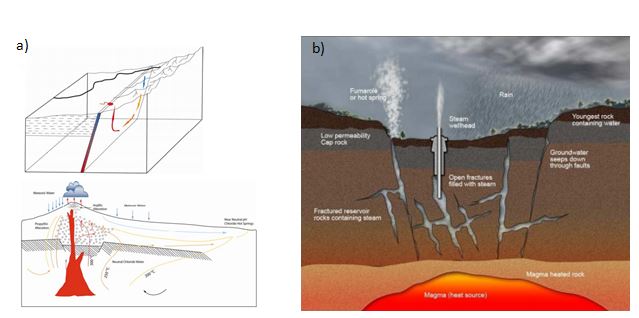

 Fig.5
a) Sketch of a geothermal system (USGS) – b) Magma heat as heat force
(from Geothermal Communities –GEOCOM – project)


A geothermal field consists of three elements:

  1. Thermal source
    • a magma penetration or a normal heat flow
  2. Reservoir
    • a thermally permeable rock formation
  3. Fluids which act as heat carriers
    • meteoric, surface or magma origin; in liquid or vapor state with dissolved solid substances and gases

The mechanism underlying geothermal systems is largely governed by fluid convection.

When water is heated by the earth’s heat, hot water or steam can be trapped in permeable and porous rocks under a layer of impermeable rocks and a geothermal reservoir can be created and this natural collection of hot water is properly called a “geothermal reservoir”.

“Geothermal Reservoir indicates the hot and permeable part of a geothermal system that may be directly exploited”.



 Fig 6

Fig.6 – Formation of Geothermal Reservoir (from Geothermal Communities –GEOCOM – project)

Examples of geothermal resources are illustrated below:

 fig7



       Fig.7 – Geothermal resources



The table below lists the geothermal resources and the figures show their illustrations

Tab1

 Table 1 – Geothermal Resource Types

The figures 8-9-10-11 show the illustration of types 1-2-3-6-8



Fig 8_a e 8b
Fig. 8 : illustration of geothermal resources



a) Hot water dominated geothermal resource
b) Vapor dominated geothermal resource


Convective hydrothermal resources according to the predominant fluid phase are categorized as

  • Vapor dominated (steam) or liquid-dominated (hot water).



 fig9

Fig.9 : Convective hydrothermal resources



  • Sedimentary basins produce higher temperature resources than the surrounding formations



 fig10

Fig.10 : Geo-pressured geothermal resource





fig11

Fig.11 :Hot dry rock exploitation





1.3.1 Classification of geothermal systems

The most common criterion to classify geothermal resources is based on the enthalpy of the geothermal fluids.

While differing in detail, the industry recognizes three grades of extractive geothermal energy and temperature is used as the classification parameter because it is considered as one of the simplest parameters (temperature used is the average reservoir temperature measured in exploration wells or estimated by geo-thermometers or other means, Hochstein, 1990).

Geothermal resources have been classified by their reservoir temperatures into

  • low, intermediate and high enthalpy resources

 Tab2

Table 2 – Classes of temperatures/enthalpy



The table below shows a general classification based on temperature, typical reservoir fluid, common use and technology used

Tab3

Table 3 – Classification based on temperature, typical reservoir fluid, common use and technology used
(from Geothermal Systems and Technologies, Geothermal communities)



A distinction is made between

  • water-dominated geothermal systems
  • vapor-dominated (or dry steam) geothermal systems.



The water-dominated systems, whose temperatures may range from < 125 to > 225°C, are the most widely distributed in the world.

In vapor-dominated systems liquid water and vapor normally co-exist in the reservoir, with vapor as the continuous pressure controlling phase.



A. HIGH TEMPERATURE GEOTHERMAL SYSTEMS

In high temperature geothermal systems, the underground waters are very hot, usually, over 220 ° C. Temperatures can be even higher, such as, for example, in Larderello (Italy) (260° C), Cerro Prieto (Mexico) (388° C) or S. Vito (Campi Flegrei, Italy) (400 °C) –  the latter area has registered the highest temperature ever observed in a geothermal system.

In these systems, the heat flux is 3-4 times higher than normal and can generally be found in correspondence with cooling magma intrusions, between 3 and 15 km of depth.

Geothermal systems can present both an ascent of “dry” and overheated vapour, in the absence of liquid water (this constitutes the so called “vapour-dominated systems”), and an ascent of a mix of liquid water and vapour (“water-dominated systems”).

Vapour, drawn through wells and systems of pipes, is used to give power to a turbine system, which in turn produces electricity.

Vapour-dominated systems are the most productive, because in water-dominated systems the liquid phase has to be separated and eliminated and this entails an expenditure of energy.

Vapour-dominated systems are quite rare and there are only four, spread around the globe: Larderello and M. Amiata (Italy), The Geysers (California), Matsukawa (Japan) e Kawah Kamojang (Indonesia), while the most important water-dominated ones are in Wairakei (New Zealand) and Cerro Prieto (Mexico).



Fig12

Fig. 12 – Two simplified models of geothermal systems
(Jiaqi Liu, Xiaoyu Chen and Wenfeng Guo)
(UN Geothermal Training Program and Volcanic Natural Resources and Volcanic Landscape Protection)





B. LOW TEMPERATURE GEOTHERMAL SYSTEMS

In low temperature geothermal systems, where temperatures are below 150° C, direct production of electricity from vapor is not generally convenient.

However, if temperatures are above 90° C it is possible to use warm fluids to vaporize a second fluid that has a lower boiling temperature (such as freon, isobuthane or ethyl cloride), thus obtaining vapor for indirect electricity production, even if the productivity level of this process is rather low.

Hot waters though lend themselves to a variety of uses, with a “cascade” scheme, that first uses hot fluids in applications that require higher temperatures, and then reuse them, in applications that require lower temperatures, as they get cooler. Its primary application is for urban heating, for which water between 130° C and 50° C can be used.


References

  • Geothermal Handbook – Energy Sector Management Assistance Program (ESMAP)
  • Eni scuola – Geothermal energy, ENI
  • Classification of geothermal systems – a possible scheme – Subir K. Sanyal – GeothermEx, Inc.
  • Geothermal reservoir engineering – Geothermal Communities (GEOCOM) project EU
  • Geothermal Handbook: Planning and Financing Power Generation – Energy Sector Management Assistance Program (ESMAP)
